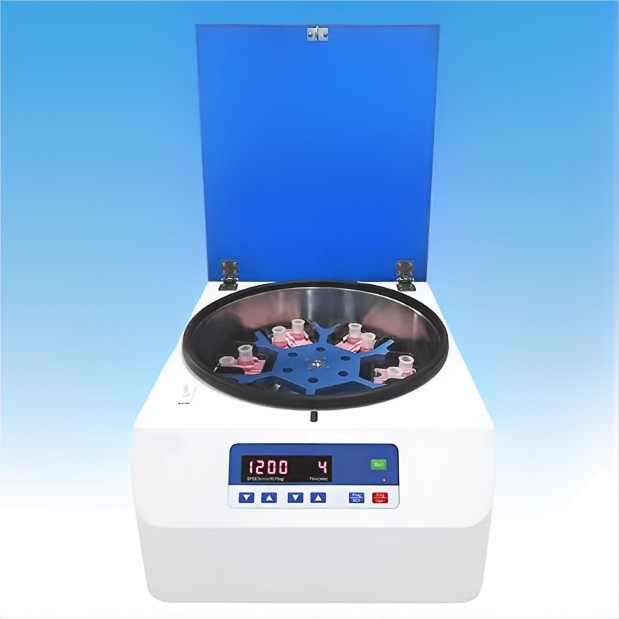

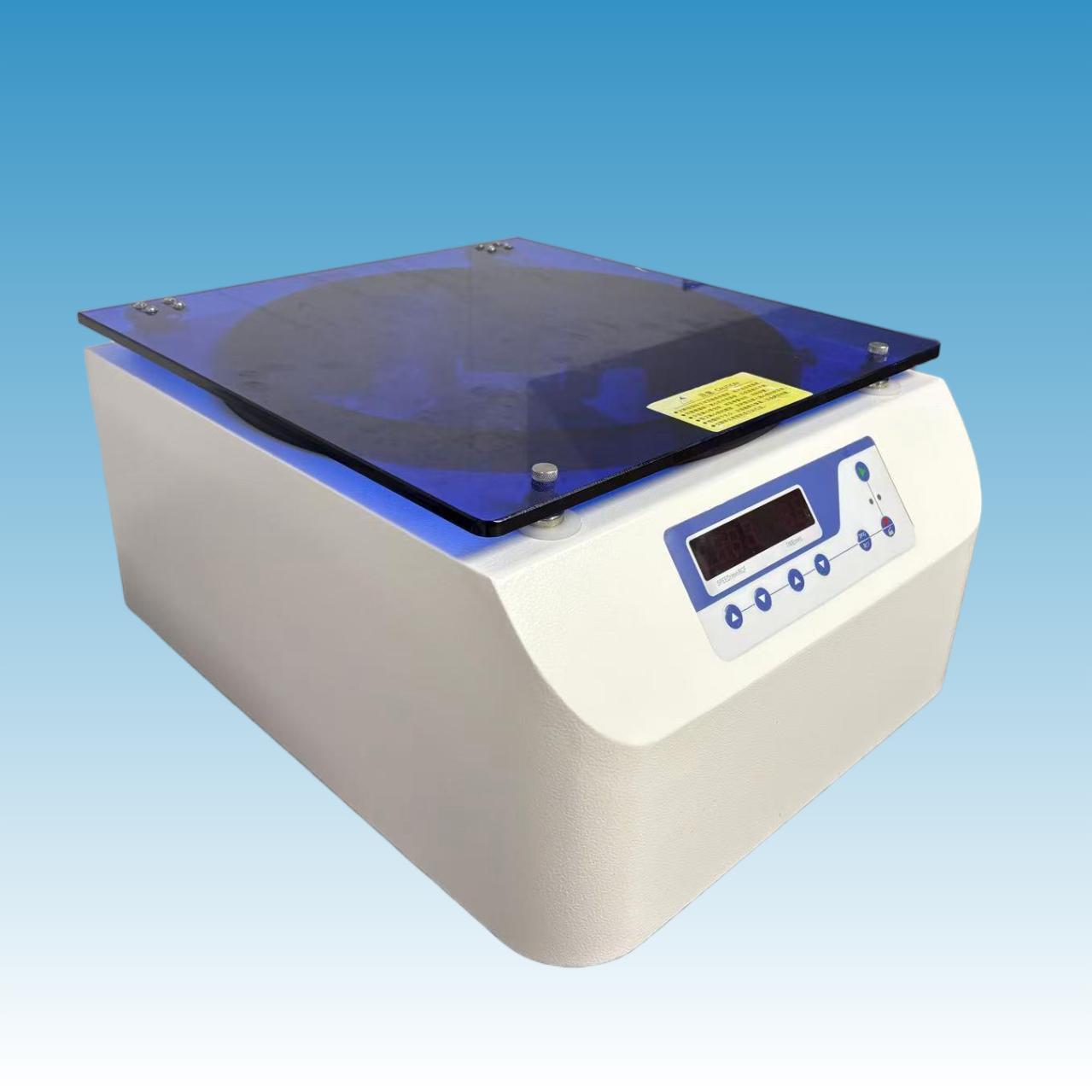

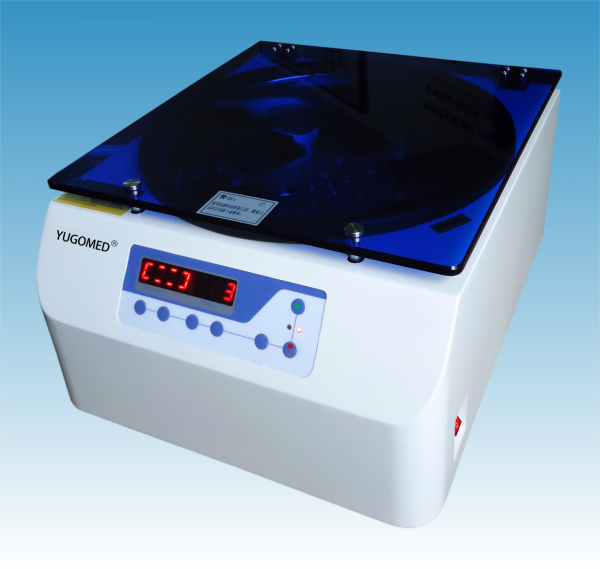

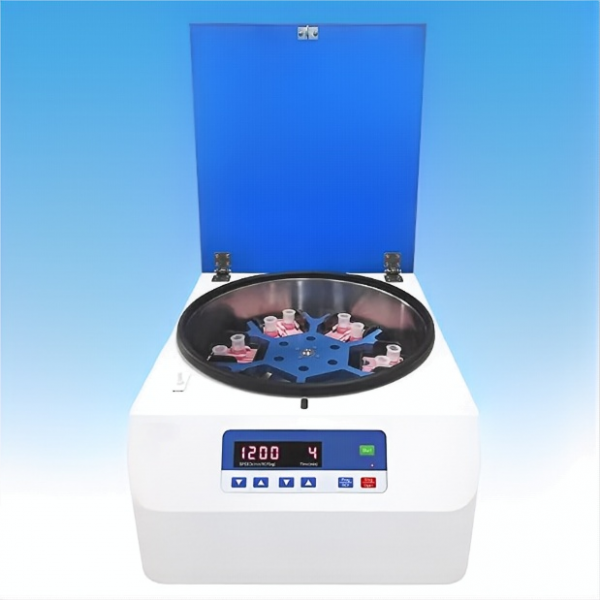

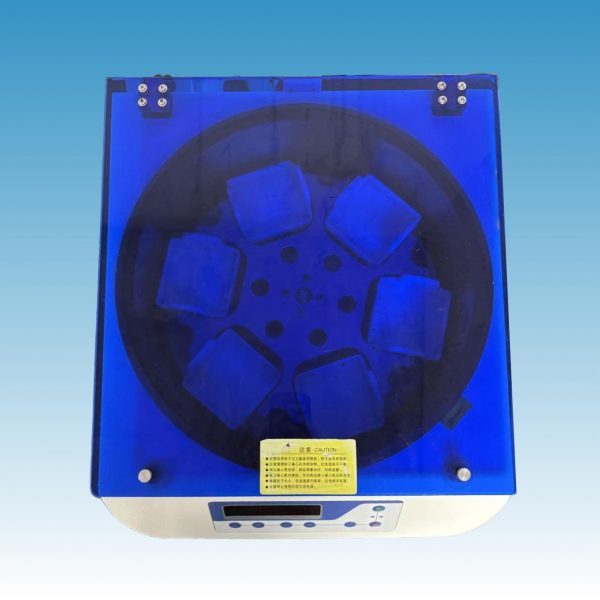

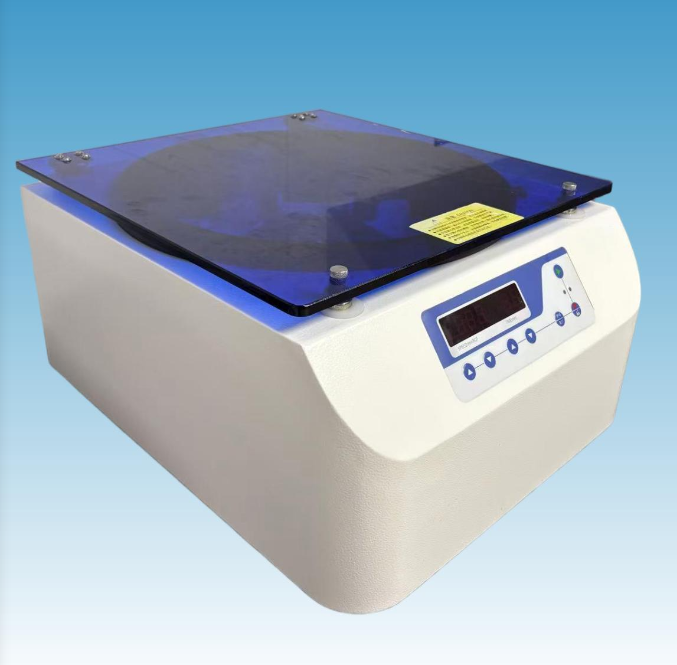

YGR® Cytology Centrifuge
The YGR Cytology Centrifuge is a specialized device used for the preparation of thin-layer cytology slides, especially for cervical cells. Samples collected via cervical brush undergo gradient centrifugation, separating impurities and spreading effective diagnostic components (cells and bacteria) into a flat, uniform layer without overlap. These ultra-thin layers are then absorbed onto glass slides for microscopic examination or computer-assisted reading.
Product Description

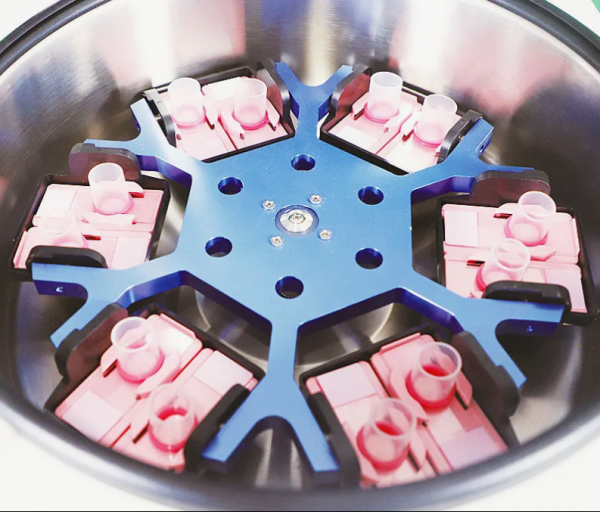

The YGR Cytology Centrifuge is specifically designed for producing uniform thin-layer cell preparations, particularly for cervical cytology. Cervical cell samples collected using a brush undergo gradient centrifugation, effectively removing impurities. The remaining diagnostic elements—such as cells and bacteria—are then evenly spread into a thin, non-overlapping layer. This uniform layer is transferred onto a glass slide, making it ideal for microscopic evaluation or automated digital analysis. Capable of processing up to 12 samples in just 5 minutes, the TCT12-S ensures efficient, contamination-free operation, producing clean backgrounds and consistent smear quality with minimal effort.
Design
-
Microprocessor-controlled system with a flexible shaft drive for direct rotor control.
-
Smooth operation with low vibration and low noise.
-
Frequency conversion motor for stable performance.
-
LED display shows Speed, Timer, RCF, and Memory Program settings.
User-Friendly Features
-
Automatic lid-locking and holding while rotor is in motion.
-
“Mute” patented technology ensures noise levels stay below 55 dB at max speed.
-
Auto rpm/RCF conversion simplifies parameter adjustment.
| Product Name | YGR® Cytology Centrifuge |
| Model | YGR-Z01 |
| Material | Plastic, Steel |
| Dimension | the maximum opening diameter：70mm |
| Standard | CE ISO |
| Packing Specification | Customized |
| Sterilization Method | EO |
| Max Speed | 1200 Rpm |
| Speed Range(Rpm) | 0-2000rpm Adjustable |
| Max Capacity(Ml) | 12 Cell Slide Clips |
| Power Supply | AC220V,50Hz,5A,60W |
| Trademark | YUGOMED |
| Origin | Hangzhou China |
Contact Us:
We’re committed to providing you with the best service possible.
Could you provide free samples for our testing before we place the order?
Yes, of course. We understand you may need to test products, especially consumables, with your equipment. We are happy to provide free samples for compatibility testing, but the shipping costs would be covered by you.
Why are there no prices listed on your website?
We offer customised pricing based on your order quantity and destination, as shipping costs may vary. To get the best quote, please contact our team directly.
Could you help with local registration?
Yes, we can assist with local registration to ensure our products meet your market’s regulatory requirements.
What is your lead time?
It depends on the product and order size. Production usually takes up to 10 days, with shipping taking 7–30 days thereafter.
Do you have certificates? Is OEM/ODM available?
Yes. We hold CE (MDR), ISO 13485, and CFS certifications. We also support OEM/ODM projects.
